Description

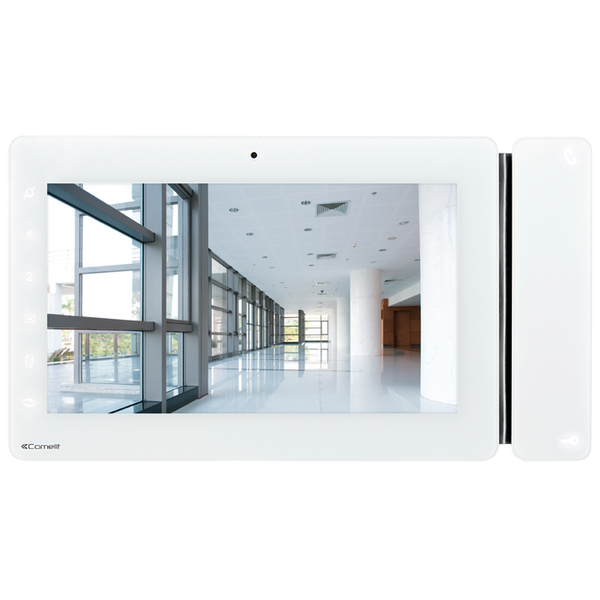

Maxi colour monitor for flush mounting (using optional box art. 6817) or surface mounting (with optional support art. 6820), with 7” / 16:9 touch screen, full-duplex hands-free audio and touch sensitive commands. Allows brightness, contrast, audio volume and ringtone volume adjustment. Ringtones can be customised by selecting from the various melodies provided. Fitted as standard with a key button, enable/disable audio button with corresponding indicator LEDs and a further 6 programmable buttons for self activation, privacy service and other programmable functions.
Features:
- Flush-mounted (accessory for mounting included)
- Surface-mounted (accessory for mounting included)
- Color monitor with 7 16:9Wide-Screen
- Hands-free full-duplex audio
- Touch sensitive controls.
- Adjustment of brightness level, contrast, audio volume and ringtone volume
Technical Specifcations
Color
- White RAL9003
- base grey RAL7001
Material
- ABS
- Glass
Mount Type
- Flush Mount
- Wall Mount
- Desk Base Mount
Resolution
800x480
Voltage
22÷34 VDC (Bus)
Absorption
11.2 W
Button Type
Capacitive
Clamps
L L - + CFP1 CFP2 S+ S- In1 In2
IP Rating
IP30
Operating Temperature
41 ÷ 104 (°F)
Compliance
- RoHS II - 2011/65/UE (EN IEC 63000:2018)
- EMC 2014/30/UE (EN 61000-6-1:2007
- EN 61000-6-3:2007+A1:2011)
Dimensions
223x124x25 mm
Weight
1.764
